In contemporary commercial interiors, luxury villas, and corporate offices, exposed bulbs and heavy light fixtures have been replaced by seamless linear illumination and acoustic ceiling textures powered by extruded aluminium LED profiles and ceiling baffle sections.
Aluminium profile channels serve two essential purposes: they act as a continuous heat sink that dissipates heat away from sensitive LED chips—prolonging strip lifespan by thousands of hours—while snapping together with frosted polycarbonate diffusers to produce a dotless, glare-free architectural glow.
Paired with suspended aluminium U-baffle ceiling extrusions, commercial spaces achieve clean acoustic sound dampening, concealed HVAC ducting, and striking geometric lines.
The 3 Major Styles of Aluminium LED Profile Channels
1. Surface-Mounted
Sits flush directly onto ceilings, cabinet undersides, or drywall without cutting grooves. Equipped with snap-on spring mounting clips.
2. Trimless Plaster-In
Features perforated wings embedded directly into gypsum plasterboard. After putty and paint, only a razor-thin luminous slot is visible on the wall or ceiling.
3. Suspended Pendant
Heavy-gauge deep channel profiles hung from high ceilings via adjustable stainless steel aircraft wire cables, providing up-and-down bi-directional lighting over office workstations.
Standard LED Profile Channel Dimensions & Sizing Matrix
Below is a dimensional reference table of extruded aluminium lighting channels and ceiling profiles commonly specified across Delhi NCR:
| Profile Channel Type | External Dimensions (Width × Depth in mm) | Internal Strip Width (mm) | Primary Interior Lighting Role |
|---|---|---|---|
| Slim Surface Mount | 17.0 × 8.0 mm | Up to 12.0 mm | Under-cabinet kitchen counter lighting, wardrobe shelf edge glow |
| Standard Recessed Flanged | 24.0 × 15.0 mm (Flange Width) | Up to 12.0 mm | False ceiling cove perimeters, wooden wall paneling groove lights |
| Deep Dotless Channel | 35.0 × 35.0 mm | Up to 20.0 mm (Dual Strip) | Main general room lighting, zero hotspot visible reflection |
| Suspended Linear Pendant | 50.0 × 75.0 mm | Up to 35.0 mm | Corporate conference table linear hanging lights, co-working spaces |
| Trimless Plaster-In Slot | 60.0 × 14.0 mm (With Wings) | Up to 12.0 mm | Seamless continuous ceiling-to-wall light lines in luxury villas |

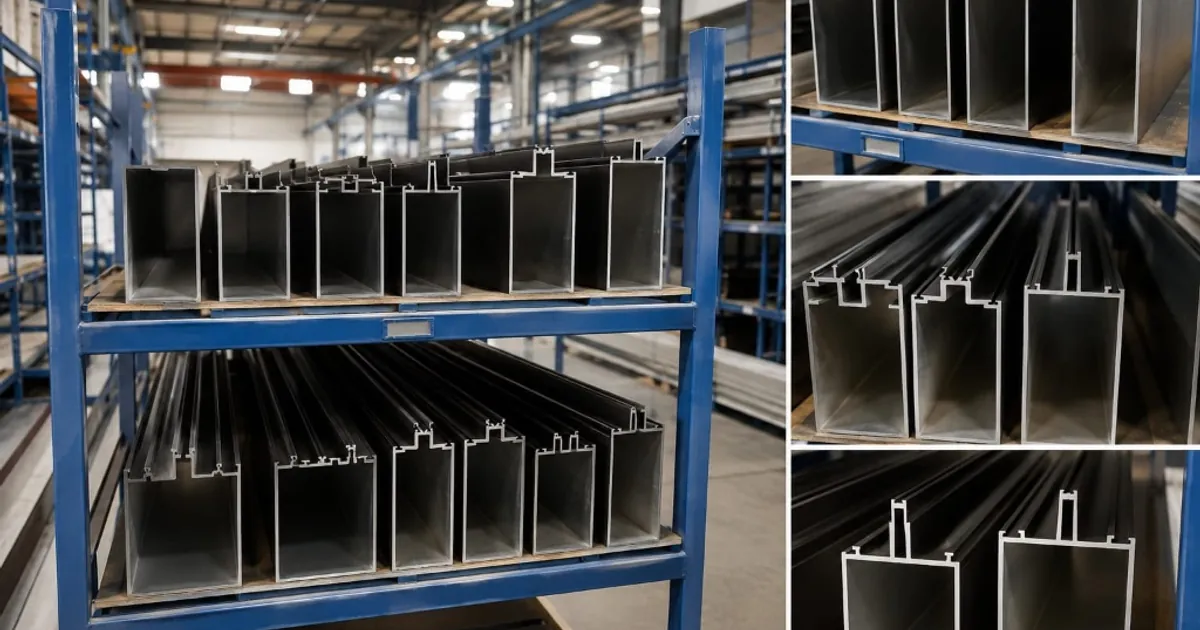

Aluminium False Ceiling Baffle Sections: Acoustic & Visual Design
In airports, shopping malls, hotel lobbies, and tech campuses, open-cell linear aluminium U-baffle box profiles are the leading false ceiling choice:
Standard U-Baffle Cross-Sections
Common extruded U-baffle dimensions include 25×50 mm, 30×75 mm, 40×100 mm, and 50×150 mm with wall thicknesses from 0.8mm to 1.5mm.
Concealed Carrier Rail Snapping System
Baffle sections feature integral top snap-fit lips that click directly into pre-punched metal carrier suspension rails spaced at 100mm, 150mm, or 200mm centers. No visible screws or welding required.
Integrated Lighting Integration
Because aluminium baffles and LED profile channels share matching cross-sections, linear lighting profiles can be inserted intermittently between baffle rows, creating an integrated architectural ceiling.
Diffuser Optics & Architectural Finishes
- Opal Frosted Polycarbonate Diffuser: Transmits 75% to 80% light while eliminating visible LED diode pixel dots, creating a smooth beam of uniform light.
- Black Smoked Diffuser: When turned off, the channel appears as a stealth black architectural stripe; when powered on, warm light shines through.
- Finishes: Anodized natural silver matt, powder-coated jet black (RAL 9005), signal white (RAL 9016), and realistic wood-grain heat sublimation film for biophilic interiors.
Frequently Asked Questions
Why is aluminium essential for LED strip lighting channels?
High-output LED strips generate intense localized heat. If stuck to wood or plastic, heat builds up rapidly, causing diode lumen depreciation and premature failure. Extruded aluminium acts as a continuous heat sink that pulls heat away from the PCB, ensuring over 50,000 hours of operating life.
What standard lengths are aluminium LED profiles supplied in?
Standard lengths are 2.0 meters, 2.5 meters, and 3.0 meters, complete with matching continuous polycarbonate diffusers, end caps, and mounting clips.
Can Imperial Metal Mart supply architectural profiles in Delhi NCR?
Yes. Imperial Metal Mart stocks genuine Jindal Aluminium architectural profiles, ceiling channels, and specialized extrusions at our Paharganj central depot in New Delhi, serving interior contractors and lighting manufacturers across North India.
Source Architectural Extrusions in Delhi NCR
Imperial Metal Mart supplies genuine Jindal Aluminium architectural sections, false ceiling profiles, and specialized extrusions with fast dispatch and wholesale rates.
