In precision CNC turning workshops across Delhi NCR, Faridabad, Manesar, and Pune, solid extruded aluminium rods and round bars are the foundational stock for millions of turned components. From automotive sensor housings, hydraulic cylinder pistons, and pneumatic valve spools to aerospace UAV fasteners and electrical connectors, solid aluminium bar stock offers unparalleled turning speeds and rapid cycle times.
However, precision machining requires strict material consistency. Non-standard secondary remelt bars often contain hard iron grit inclusions that instantly chip diamond tooling or cause continuous stringy swarf ("bird-nesting") that wraps around high-speed lathe chucks.

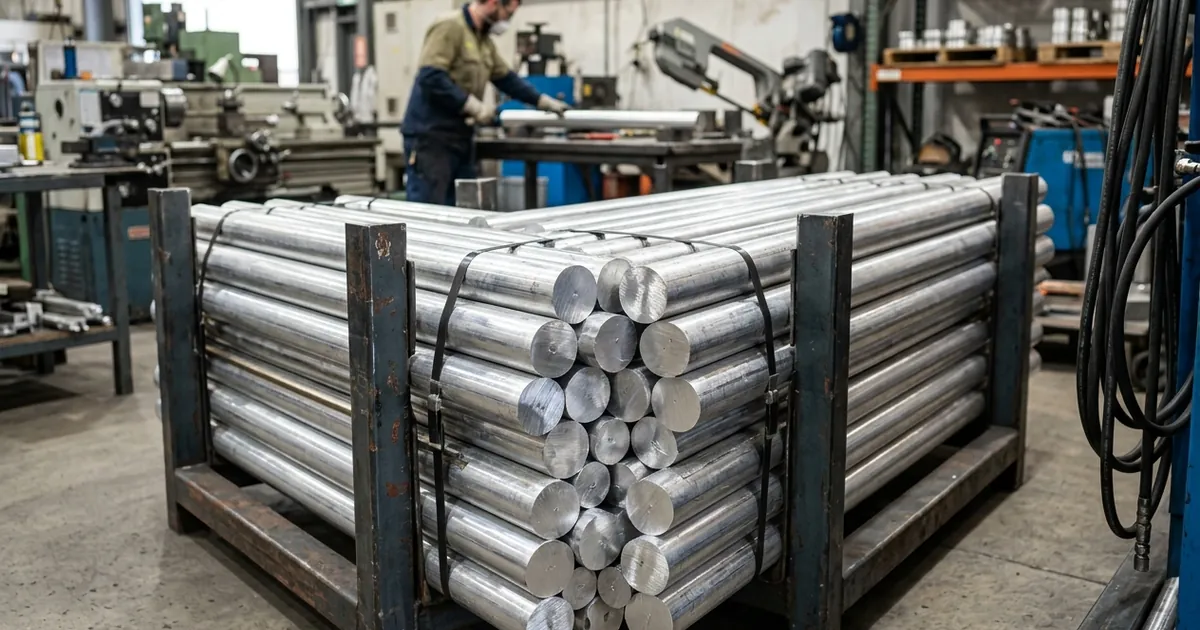

Extruded by Jindal Aluminium from certified virgin primary ingots, Jindal solid aluminium rods deliver microscopic chemical uniformity, straightness, and predictable chip-breaking characteristics. In this technical manual, Imperial Metal Mart explores rod geometries, alloy selection, CNC tooling parameters, and procurement standards.
Bar Stock Geometries: Round, Hexagonal & Square Bars
Jindal extrudes solid aluminium bars across three standardized mechanical cross-sections:
1. Solid Round Rods (Cylindrical Bars)
Continuous circular cross-section extruded with tight diametrical tolerances conforming to IS 733 / ASTM B221.
Diameter Range:From 6.0mm (1/4") miniature stock up to 250mm+ (10") heavy billet stock.Applications: Shafts, rollers, precision bushings, pneumatic pistons, pulleys, flanges.
2. Hexagonal Bars (Hex Rods)
Six-sided symmetrical bar stock designed for automatic screw machines and Swiss-type lathes.
Across-Flats (A/F) Range: 10mm A/F up to 65mm A/F.Applications: High-precision hex nuts, hydraulic hose couplings, standoff spacers, valve bodies.
3. Solid Square Bars
Solid four-sided equilateral bar stock with sharp 90° edges.
Size Range: 10x10mm up to 100x100mm.Applications: Machine tool slide rails, clamp blocks, manifold blocks, robotic sensor mounts.
Metallurgical Comparison: 6063 vs. 6082 vs. 7075
Matching the correct alloy to your CNC machining operations is vital for productivity and component longevity:
| Alloy & Temper | Tensile Strength (UTS) | Hardness (Brinell) | Machinability Rating | Key Mechanical Specialty |
|---|---|---|---|---|
| Alloy 6082-T6 (General Machining) | 310 – 340 MPa | 95 – 100 HB | 90% (Outstanding chip breaking) | High strength; clean swarf fracture on automatic CNC lathes |
| Alloy 6061-T6 (Aerospace Grade) | 290 – 310 MPa | 90 – 95 HB | 85% (Very Good) | All-round champion; superior corrosion resistance & weldability |
| Alloy 6063-T6 (Architectural / Soft) | 220 – 245 MPa | 70 – 75 HB | 70% (Tends to produce long curly ribbons) | Superior surface finish, easy polishing, highest anodizing clarity |
| Alloy 7075-T6 (High Strength Aircraft) | ≥ 540 – 570 MPa | 150 – 160 HB | 95% (Cuts like mild steel) | Zinc-alloyed; extreme tensile strength for defense UAV gears & bolts |
CNC Lathe Turning Parameters: Feeds, Speeds & Tooling
To eliminate bird-nesting and achieve mirror-smooth finishes (Ra ≤ 0.4 μm) on Jindal aluminium round bars:
- Cutting Tool Geometry: Use dedicated non-ferrous carbide inserts (ISO classification N-series) or Polycrystalline Diamond (PCD) tipped inserts featuring mirror-polished top rakes and extremely sharp cutting edges with up to 15° to 20° positive rake angles.
- Surface Cutting Speeds: Run spindle speeds achieving Vc = 300 to 600 m/min. Aluminium dissipates heat into chips rapidly, allowing very high surface footage without tool degradation.
- Feed Rates: Roughing passes: 0.20 to 0.40 mm/rev with high depth of cut (2.0mm to 4.0mm) to break chips into discrete C-shaped fragments. Finishing passes: 0.05 to 0.12 mm/rev with a wiper insert nose radius.
- High-Pressure Coolant: Direct a concentrated jet of 8% to 10% water-soluble emulsion coolant straight into the cutting zone to prevent chip re-welding.
Frequently Asked Questions
What is the standard piece length of Jindal aluminium round rods?
Standard Jindal aluminium rods are manufactured in lengths of 3.66 meters (12 feet) and 3.0 meters, bundled securely in HDPE woven fabric. For high-volume automated bar-feeder CNC machines, custom lengths can be arranged through Imperial Metal Mart.
Can aluminium rods be hard anodized for wear resistance?
Yes. Turnings machined from 6082-T6 and 6061-T6 rods can undergo Type III Hardcoat Anodizing (35 to 50 microns), producing a diamond-hard surface layer (approx. 60–65 Rockwell C) that withstands extreme sliding friction in hydraulic pistons and pneumatic cylinders.
Does Imperial Metal Mart offer precision cutting for solid rods?
Yes. Imperial Metal Mart provides specialized high-speed carbide circular saw cutting services in Paharganj, New Delhi, supplying precision cut-to-length billets and blanks ready for direct CNC lathe chucking.
Source Genuine Jindal Aluminium Rods in Delhi NCR
Imperial Metal Mart stocks full inventories of Jindal solid round rods, hex bars, and square bars in Alloys 6082-T6, 6061-T6, and 6063-T6 in Paharganj, New Delhi.
